BCYE Agar (Buffered Charcoal Yeast Extract Agar), also known as Legionella Agar, is a specialized bacterial culture medium used for the isolation and cultivation of Legionella species specially Legionella pneumophila. Legionella is a genus of bacteria that can cause a severe form of pneumonia known as Legionnaires’ disease.
Defination of BCYE Agar:
BCYE agar, or Buffered Charcoal Yeast Extract agar, is a specialized bacterial culture medium designed for isolating and cultivating Legionella species, bacteria responsible for causing Legionnaires’ disease. It contains charcoal to neutralize inhibitory substances, yeast extract for nutrients, and buffered salts to maintain a stable pH. BCYE agar is crucial for diagnosing Legionnaires’ disease and investigating Legionella outbreaks.
History and Modifications of BCYE Agar:
1. Historical Background:
- BCYE agar, or Buffered Charcoal Yeast Extract agar, was first developed in the late 1970s as a specialized culture medium for Legionella bacteria.
- The need for such a medium arose from the challenges in isolating and growing Legionella species, which were responsible for a mysterious outbreak of pneumonia among American Legion convention attendees in 1976.
2. Development and Original Formulation:
- The original BCYE agar formulation was designed to overcome the inhibitory effects of substances present in environmental samples that hindered the growth of Legionella.
- The inclusion of charcoal in the medium was a key innovation, as it helped adsorb inhibitory compounds and enhance the recovery of Legionella bacteria.
- Yeast extract provided essential nutrients, while buffered salts maintained a stable pH for optimal bacterial growth.
3. Modifications and Variations:
Over the years, BCYE agar has undergone various modifications and adaptations to suit specific research and diagnostic needs:
- Selective BCYE Agar: Some variations of BCYE agar incorporate selective agents, such as antibiotics or antimicrobial compounds, to inhibit the growth of competing bacteria while allowing Legionella to thrive.
- Supplemental Media: In certain diagnostic laboratories, BCYE agar is used alongside other media, such as BCYE with cysteine (BCYE-C) or BCYE with alpha-ketoglutarate (BCYE-αK), which provide additional nutrients and improve the recovery of Legionella.
- Diagnostic Use: BCYE agar is routinely used for the isolation and identification of Legionella species in clinical and environmental samples to diagnose Legionnaires’ disease and investigate outbreaks.
- Research and Surveillance: In addition to clinical diagnostics, BCYE agar plays a crucial role in surveillance and research related to Legionella epidemiology and environmental monitoring.
Purpose and Significance of BCYE Agar:
- Purpose: Isolation of Legionella
- BCYE Agar is designed to culture and isolate Legionella bacteria, which are challenging to grow on standard media due to their fastidious nature.
- Purpose: Diagnosis of Legionnaires’ Disease
- BCYE Agar is crucial in diagnosing Legionnaires’ disease by confirming the presence of Legionella in patient samples.
- Purpose: Environmental Surveillance
- BCYE Agar detects and monitors Legionella in water sources and HVAC systems, helping identify potential sources of exposure and prevent outbreaks.
- Purpose: Research and Epidemiology
- BCYE Agar is used in scientific research to study Legionella behavior, virulence factors, and antibiotic susceptibility, aiding in public health efforts.
- Significance: Enhanced Recovery
- BCYE Agar’s formulation, with charcoal and yeast extract, enhances Legionella recovery from complex samples with inhibitory substances.
- Significance: Specificity
- BCYE Agar is highly specific for Legionella species, reducing false-positive results in diagnostic testing.
- Significance: Outbreak Investigation
- BCYE Agar is vital during Legionella outbreaks to isolate causative strains from patients and environments, enabling prompt source identification and control measures.
- Significance: Preventive Measures
- BCYE Agar aids in environmental surveillance, helping identify and mitigate Legionella contamination, thus reducing the risk of Legionnaires’ disease in public spaces.
Importance of BCYE Agar in Microbiology:
- Isolation of Legionella: BCYE Agar is essential for the isolation and cultivation of Legionella bacteria, which are notoriously difficult to grow on standard media.
- Diagnosis of Legionnaires’ Disease: It plays a critical role in diagnosing Legionnaires’ disease, a severe pneumonia caused by Legionella infection.
- Environmental Surveillance: BCYE Agar is used for detecting and monitoring Legionella in water sources and environmental samples, aiding in public health efforts and outbreak prevention.
- Research Tool: In microbiological research, BCYE Agar is a valuable tool for studying Legionella epidemiology, virulence factors, and antibiotic susceptibility.
- Specificity and Selectivity: BCYE Agar is highly specific for Legionella species, reducing the chances of false-positive results and allowing for accurate identification.
- Outbreak Control: During Legionella outbreaks, BCYE Agar helps isolate the causative strains from patients and environments, facilitating source identification and control measures.
- Preventive Measures: Its use in environmental surveillance helps identify and mitigate Legionella contamination, reducing the risk of Legionnaires’ disease in various settings.
Short Overview about Legionella Pneumophila:
Legionella pneumophila is a pathogenic bacterium known for causing a severe respiratory illness called Legionnaires’ disease, as well as a milder flu-like condition known as Pontiac fever. Here’s a short overview of Legionella pneumophila:
- Classification: Legionella pneumophila is a Gram-negative, rod-shaped bacterium belonging to the Legionellaceae family. It is part of a larger group of bacteria known as Legionella, which includes various species.
- Natural Habitat: Legionella pneumophila is commonly found in natural aquatic environments, such as rivers, lakes, and soil. It can also inhabit human-made water systems like cooling towers, hot water tanks, and plumbing systems.
- Transmission: People primarily contract Legionnaires’ disease by inhaling aerosolized water droplets or mist containing the bacterium. It is not transmitted person-to-person.
- Pathogenesis: When inhaled, Legionella pneumophila can infect the lungs, causing pneumonia. The bacterium invades and multiplies within alveolar macrophages, immune cells in the lungs. This can lead to severe respiratory symptoms.
- Symptoms: Legionnaires’ disease symptoms include high fever, cough, shortness of breath, muscle aches, and sometimes gastrointestinal symptoms. Pontiac fever is a milder form of the illness characterized by fever and muscle aches.
- Risk Factors: Certain factors increase the risk of contracting Legionnaires’ disease, including age (older adults are more susceptible), smoking, chronic lung diseases, and weakened immune systems.
- Diagnosis: Diagnosis involves clinical evaluation, imaging studies (like chest X-rays), and laboratory tests to confirm the presence of Legionella pneumophila in respiratory secretions.
- Treatment: Legionnaires’ disease is treated with antibiotics, typically macrolides or fluoroquinolones. Early treatment is crucial for a better prognosis.
- Prevention: Preventing Legionella pneumophila infections involves proper maintenance and disinfection of water systems, especially in healthcare facilities and buildings with cooling towers. Regular monitoring and testing for Legionella are essential.
- Global Impact: Legionnaires’ disease outbreaks have occurred worldwide, with notable outbreaks tied to contaminated water systems in hotels, hospitals, and cruise ships. Public health measures and awareness play a significant role in controlling the spread of the bacterium.
In summary, Legionella pneumophila is a bacterium responsible for causing Legionnaires’ disease, a potentially severe respiratory illness. Understanding its transmission, symptoms, diagnosis, and prevention is essential for public health and healthcare management.
Principles of BCYE Agar:
The principles of BCYE Agar (Buffered Charcoal Yeast Extract Agar) revolve around its specialized composition and its role in facilitating the isolation and cultivation of Legionella bacteria. Here are the key principles:
- Selective Medium: BCYE Agar is a selective medium designed to promote the growth of Legionella species while inhibiting the growth of other microorganisms commonly found in environmental and clinical samples. This selectivity is achieved through the inclusion of specific ingredients and nutrients.
- Charcoal Component: BCYE Agar contains activated charcoal, which acts as an adsorbent. Charcoal helps to trap and neutralize inhibitory substances present in the sample, such as toxic chemicals or competing microorganisms. This adsorption process is crucial for the successful isolation of Legionella.
- Yeast Extract: BCYE Agar contains yeast extract, providing essential nutrients and growth factors necessary for the growth of Legionella bacteria. Legionella are fastidious organisms, meaning they require specific nutrients for their growth, and yeast extract fulfills these requirements.
- Buffered Salts: The agar medium is buffered to maintain a stable pH level. Stable pH conditions are vital for the growth and survival of Legionella species, as they are sensitive to changes in pH.
- Selective Agents (Optional): Some variations of BCYE Agar may include selective agents, such as antibiotics or antimicrobial compounds. These agents further inhibit the growth of non-Legionella bacteria, ensuring that Legionella can thrive.
- Isolation and Recovery: BCYE Agar is primarily used for the isolation and recovery of Legionella bacteria from clinical samples (e.g., sputum, bronchoalveolar lavage) and environmental samples (e.g., water, biofilms). The charcoal, yeast extract, and selective agents work in concert to create an environment conducive to Legionella growth.
- Diagnostic Tool: BCYE Agar is a critical tool in clinical diagnostics, helping confirm the presence of Legionella in patient samples. It is especially important for diagnosing Legionnaires’ disease, a severe form of pneumonia caused by Legionella infection.
- Environmental Surveillance: BCYE Agar is also used in environmental monitoring and surveillance programs to detect and identify Legionella in water systems, cooling towers, and other potential sources of infection.
- Diagnosis and Treatment Planning:
- Clinical applications assist in diagnosing diseases, conditions, and injuries, enabling healthcare providers to formulate effective treatment plans.
- Patient Monitoring:
- Continuous monitoring of vital signs and medical data helps healthcare professionals track patients’ progress and adjust treatments as needed.
- Electronic Health Records (EHR):
- EHR systems streamline patient record-keeping, improving the accuracy and accessibility of patient information across healthcare settings.
- Telemedicine and Telehealth:
- Telemedicine applications facilitate remote consultations, allowing patients to access healthcare services from the comfort of their homes.
- Medical Imaging and Radiology:
- Medical imaging applications enable the interpretation of X-rays, MRIs, CT scans, and other diagnostic images for disease detection and assessment.
- Medication Management:
- Applications help healthcare providers prescribe, dispense, and monitor medications, reducing medication errors and improving patient adherence.
- Clinical Decision Support:
- Decision support systems provide healthcare professionals with evidence-based guidance for clinical decision-making.
- Telemonitoring for Chronic Conditions:
- Applications allow healthcare teams to remotely monitor patients with chronic diseases, enhancing disease management and reducing hospitalizations.
- Health Information Exchange (HIE):
- HIE applications facilitate the secure exchange of patient information among healthcare providers, improving coordination of care.
- Laboratory Information Systems (LIS):
- LIS applications manage and track laboratory tests, results, and specimen information, ensuring accuracy and efficiency in diagnostic testing.
- Surgical Planning and Robotics:
- Surgical applications assist in preoperative planning and enable robotic-assisted surgeries for increased precision.
- Point-of-Care Testing:
- Point-of-care applications allow for rapid diagnostic testing at the bedside, helping with quick decision-making in emergency and critical care settings.
- Patient Engagement and Education:
- Patient-facing applications provide information, support, and engagement tools to help patients actively participate in their healthcare.
- Remote Patient Monitoring:
- RPM applications track patient health remotely, enabling early intervention and reducing hospital readmissions.
- Epidemiological Surveillance:
- Applications assist in monitoring and controlling disease outbreaks, contributing to public health efforts.
- Quality Improvement Initiatives:
- Clinical applications support quality improvement initiatives, helping healthcare organizations enhance patient care and safety.
- Medical Billing and Coding:
- Billing and coding applications help healthcare facilities manage financial aspects of patient care and insurance claims.
- Medical Education and Training:
- Medical education applications provide resources for medical students, residents, and healthcare professionals to enhance their knowledge and skills.
Ingredients, Materials and composition of BCYE Agar:
- Yeast Extract:
- Yeast extract is a nutrient-rich substance derived from yeast cells.
- It provides essential amino acids, vitamins, and minerals required for bacterial growth and metabolism.
- ACES Buffer:
- ACES stands for N-(2-Acetamido)-2-aminoethanesulfonic acid.
- ACES buffer is used to maintain a stable pH in laboratory solutions, including culture media like BCYE Agar.
- Activated Charcoal:
- Activated charcoal is a highly porous form of carbon.
- It is used in BCYE Agar to adsorb and neutralize inhibitory substances present in samples, promoting the growth of Legionella bacteria.
- Potassium Hydroxide (KOH):
- KOH is a strong base.
- In some laboratory applications, KOH is used for sample preparation, especially in the preparation of wet mounts for microscopy.
- Alpha-ketoglutarate is a molecule involved in the Krebs cycle (citric acid cycle) of cellular respiration.
- It may be added to specific culture media to support the growth of certain microorganisms.
- L-Cysteine is an amino acid.
- It is used in some culture media, including BCYE Agar, as a reducing agent to create an anaerobic environment, which is beneficial for the growth of certain bacteria.
- Ferric Pyrophosphate:
- Ferric pyrophosphate is a source of iron.
- It may be added to culture media as a nutrient to support the growth of iron-dependent microorganisms.
- Agar is a gelatinous substance derived from seaweed.
- It is used as a solidifying agent in culture media, allowing bacteria to grow on the surface of the agar.
- Distilled Water:
- Distilled water is water that has been purified by boiling and condensing the steam.
- It is used to prepare solutions and culture media, ensuring the absence of contaminants that might interfere with experiments or bacterial growth.
- Water: Distilled or deionized water is used to prepare the agar medium. Water quality is essential to ensure the absence of contaminants that could interfere with bacterial growth.
- Laboratory Glassware: Laboratory equipment such as flasks, beakers, and Petri dishes are used to prepare, sterilize, and pour the BCYE Agar.
The specific composition of BCYE Agar may vary slightly between different formulations and manufacturers. However, a typical composition may include:
|ngredient||Quantity (per liter)||Purpose in BCYE Agar|
|Yeast Extract||10 grams||Provides essential nutrients, vitamins, and amino acids, supporting Legionella growth.|
|ACES Buffer||10.3 grams (approx.)||Maintains a stable pH (around 6.9) for optimal Legionella growth.|
|Activated Charcoal||2 gram||Adsorbs inhibitory substances from samples, facilitating Legionella isolation.|
|Potassium Hydroxide (KOH)||2.8 gram (approx.)||Adjusts pH and acts as a reducing agent to create anaerobic conditions.|
|Alpha-Ketoglutarate||1.0 gtams (optional)||Provides additional nutrients to enhance Legionella recovery.|
|L-Cysteine||0.4 grams (approx.)||Acts as a reducing agent and enhances the anaerobic environment for Legionella.|
|Ferric Pyrophosphate||0.25 grams (optional)||Provides iron as a nutrient for iron-dependent Legionella strains.|
|Agar||Approximately 15 grams||Solidifies the medium, enabling the growth of Legionella colonies on the agar surface.|
|Distilled Water||1000 ml||Serves as a solvent and ensures the purity of the medium during preparation.|

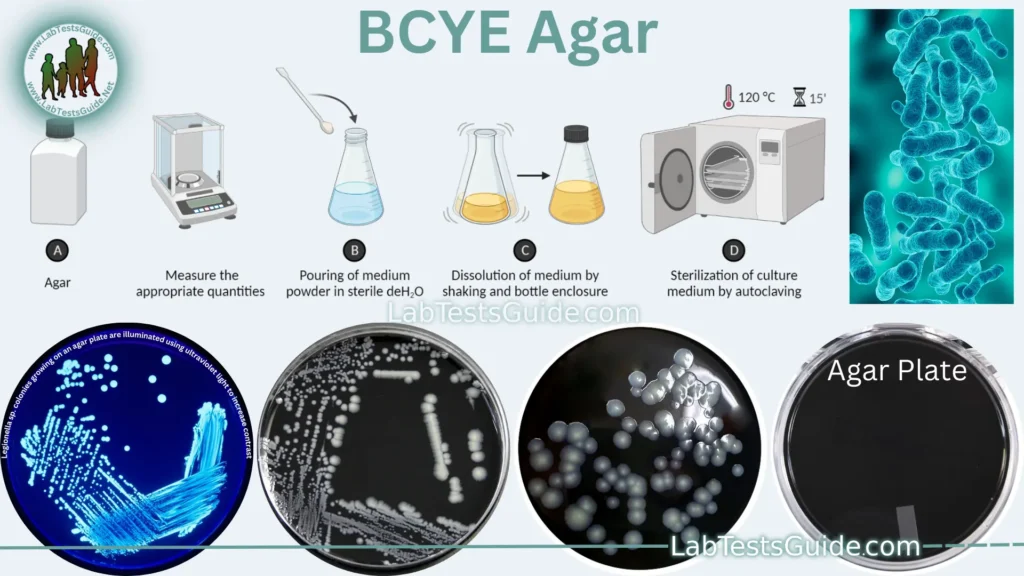

Preparation of BCYE Agar:
- Weigh and Measure Ingredients:
- Measure out the required quantities of each ingredient based on the specific formulation or manufacturer’s instructions. These quantities can vary depending on the desired concentration.
- Mix Yeast Extract and ACES Buffer:
- In a sterile container, combine the yeast extract and ACES buffer.
- Stir or mix thoroughly to ensure even distribution.
- Add Activated Charcoal:
- Add the activated charcoal to the yeast extract and ACES buffer mixture.
- Stir the mixture until the charcoal is evenly dispersed.
- Add KOH (Potassium Hydroxide):
- If required, add potassium hydroxide (KOH) to the mixture.
- Stir gently to dissolve the KOH and adjust the pH to the desired level (usually around pH 6.9).
- Add Optional Ingredients (Alpha-Ketoglutarate and Ferric Pyrophosphate):
- If alpha-ketoglutarate or ferric pyrophosphate is part of your formulation, add these ingredients and mix thoroughly.
- Prepare Agar Suspension:
- In a separate container, create an agar suspension by adding agar to distilled water.
- Mix the suspension well to dissolve the agar completely.
- Combine Agar Suspension and Charcoal Mixture:
- Pour the agar suspension into the container with the charcoal mixture.
- Mix the contents thoroughly to ensure even distribution of the agar and other ingredients.
- Adjust Volume and Concentration:
- If necessary, add distilled water to adjust the final volume and concentration of the medium according to your specific requirements.
- Autoclave or Sterilize:
- Pour the BCYE Agar mixture into appropriate containers, such as Petri dishes or tubes.
- Sterilize the containers by autoclaving or using a pressure cooker at 121°C (250°F) for about 15-20 minutes.
- Cool and Solidify:
- Allow the sterilized BCYE Agar to cool and solidify in a controlled environment, such as a laminar flow hood or a clean, sterile room.
- Once the BCYE Agar has solidified, store it in a cool, dark place until ready for use.
- Properly label the containers with the date of preparation and any other relevant information.
Required Specimins for Culturing:
Culturing in microbiology involves the growth and isolation of microorganisms on specific culture media. The choice of specimens for culturing depends on the purpose of the microbiological analysis. Here are some common types of specimens collected for culturing:
- Clinical Specimens:
- Sputum: Sputum samples are collected from the respiratory tract and are used for the diagnosis of respiratory infections, such as pneumonia and tuberculosis.
- Blood: Blood cultures are performed to detect and identify bacteria, fungi, or other microorganisms causing bloodstream infections (bacteremia or septicemia).
- Urine: Urine cultures help diagnose urinary tract infections (UTIs) by identifying bacteria or yeast in the urinary tract.
- Stool: Stool cultures are used to detect and identify bacteria, parasites, and viruses responsible for gastrointestinal infections.
- Wound Swabs: Swabs of wound exudates or pus are taken to identify bacteria causing skin and soft tissue infections.
- Cerebrospinal Fluid (CSF): CSF cultures are performed to diagnose central nervous system infections, such as meningitis or encephalitis.
- Environmental Specimens:
- Water: Water samples from various sources (e.g., tap water, cooling towers, hot tubs) are cultured to monitor the presence of waterborne pathogens like Legionella.
- Soil: Soil samples are cultured to study the microbiota, including the isolation of beneficial or pathogenic soil microorganisms.
- Food: Food samples are cultured to detect spoilage microorganisms, pathogens, and foodborne illnesses.
- Air: Air samples are cultured for indoor air quality assessments and to detect airborne pathogens or mold.
- Biological Specimens:
- Tissue Biopsies: Tissue biopsies collected during medical procedures are cultured to identify microorganisms causing infections in specific organs or tissues.
- Body Fluids: Other body fluids, such as synovial fluid (joints) and peritoneal fluid (abdominal cavity), can be cultured to diagnose infections in these areas.
- Other Specimens:
- Environmental Surfaces: Swabs or surface samples from healthcare facilities, food processing areas, or other environments may be cultured to assess cleanliness and monitor for pathogens.
- Animal Specimens: Specimens from animals, including swabs, feces, and tissue samples, are cultured to diagnose animal infections or study zoonotic diseases.
Usage Procedure of BCYE Agar:
The usage procedure for BCYE Agar (Buffered Charcoal Yeast Extract Agar) involves preparing and using the agar medium for the isolation and cultivation of Legionella bacteria. Below is a step-by-step guide for its use:
- Sterile BCYE Agar plates (prepared as per the previous instructions)
- Clinical or environmental samples (e.g., sputum, water, swabs)
- Inoculation loops or swabs
- Incubator set to 35-37°C (95-98.6°F)
- Sterile disposable gloves
- Sterile disposable pipettes
- Disposal bags for contaminated materials
- Safety precautions (Lab coat, goggles, etc.)
- Safety Precautions:
- Before starting, ensure you are wearing appropriate laboratory safety attire, including a lab coat, goggles, and disposable gloves.
- Sample Collection:
- Collect clinical or environmental samples suspected to contain Legionella, following appropriate sampling protocols and safety guidelines.
- Sample Preparation:
- If using clinical samples, process them according to established laboratory procedures, such as sputum or bronchoalveolar lavage samples.
- If using environmental samples, prepare them for culture by filtering or concentrating the water or swabbing the surface.
- Using a sterile inoculation loop or swab, transfer a small portion of the prepared sample onto the surface of a sterile BCYE Agar plate.
- Streak the sample evenly across the surface of the agar in a zigzag pattern or follow the laboratory’s recommended technique for even distribution.
- Seal the plates with parafilm or another suitable method to prevent dehydration.
- Incubate the plates upside down (agar side up) in an incubator set to a temperature between 35-37°C (95-98.6°F) for 2 to 10 days, depending on the suspected Legionella species and growth characteristics.
- Examine for Growth:
- Periodically check the BCYE Agar plates for bacterial growth during the incubation period. Legionella colonies typically appear as small, gray-white, translucent or opaque colonies with a distinct morphology.
- Document colony characteristics and count the colonies if necessary.
- Subculture (if required):
- If you need to further identify or differentiate Legionella species, subculture individual colonies onto selective media or use other appropriate diagnostic methods.
- Employ suitable Legionella identification techniques, such as molecular tests, serological assays, or biochemical tests, to confirm the presence of Legionella species.
- Report the results of Legionella isolation and identification according to the laboratory’s established reporting procedures.
- Safety and Waste Disposal:
- Dispose of contaminated materials (plates, loops, swabs, etc.) in biohazard disposal bags or containers following safety protocols.
Result Interpretation of BCYE Agar:
- Growth Absence:
No visible growth on the agar plate suggests the absence of target microorganisms, including Legionella.
- Presence of Growth:
Bacterial growth on the agar plate indicates the potential presence of microorganisms, possibly Legionella.
- Distinct Colony Appearance:
Legionella colonies typically appear small, gray-white, and translucent with a unique texture.
- Further Confirmation:
Confirm the identity of colonies through subculture and additional testing methods for Legionella species identification.
- Colony Count:
Count colonies if needed to estimate bacterial load in the original sample.
- Control Plates:
Use control plates for comparison to identify non-Legionella growth.
- Incubation Time:
Legionella colonies may take several days to appear, so consider the incubation period.
- Documentation and Reporting:
Accurately document and report results following laboratory procedures and protocols.
- Expert Interpretation:
Interpretation requires expertise to distinguish Legionella colonies from other bacteria accurately.
Coloney Characteristics of Legionella pneumophila:
|Size||Small, typically less than 1 mm in diameter.|
|Shape||Circular to irregular.|
|Color||Gray-white, translucent, or opaque.|
|Texture||Ground-glass or matte appearance.|
|Elevation||Slightly raised or convex.|
|Margin||Smooth and entire (no irregularities).|
|Transparency||May appear somewhat translucent.|
|Growth Rate||Slow growth; colonies may take several days to appear.|
|Distinctive Features||Smaller than most other bacterial colonies.|
Unique matte or ground-glass texture.
It’s important to note that while these character
Growth Other Bacterias on BCYE Agar:
|Bacteria||Colony Characteristics on BCYE Agar|
|Pseudomonas spp.||Often appear as greenish or bluish colonies; may be flat or convex.|
|Enterobacteriaceae (e.g., Escherichia coli, Klebsiella spp.)||Colonies may have varied colors, such as pink, yellow, or white.|
|Environmental Contaminants||Growth of random environmental bacteria depending on sample source.|
|Non-Legionella Species||Colony morphology and coloration can vary widely among species.|
Please note that the appearance and characteristics of bacterial colonies on BCYE Agar can vary based on the specific bacterial strain, sample source, and incubation conditions. While BCYE Agar is not highly selective for Legionella, experienced microbiologists can often differentiate Legionella colonies based on their distinctive characteristics, as mentioned previously.
Limitations of of BCYE Agar:
While BCYE Agar (Buffered Charcoal Yeast Extract Agar) is a valuable medium for the isolation and cultivation of Legionella species, it does have limitations. Here’s a list of some of its limitations:
- Lack of Selectivity: BCYE Agar may not be highly selective for Legionella species, allowing the growth of other bacteria. Selective agents or antibiotics may need to be added to enhance Legionella isolation.
- Slow Growth: Legionella colonies on BCYE Agar may take several days to appear, which can delay diagnosis and research results.
- False Positives: Non-Legionella bacteria may have colony characteristics similar to Legionella on BCYE Agar, leading to potential false-positive results.
- Species Differentiation: BCYE Agar alone may not provide species-level differentiation of Legionella. Further tests are required to identify specific Legionella species.
- Labor-Intensive: The preparation and incubation of BCYE Agar plates can be labor-intensive and time-consuming.
- Nutrient Content: The nutrient-rich composition of BCYE Agar may encourage the growth of various microorganisms, making it less selective.
- Specificity: BCYE Agar may not detect non-Legionella pathogens responsible for similar clinical symptoms.
- Environmental Contaminants: Environmental contaminants or other microorganisms from the sample source may grow on BCYE Agar.
- Specialized Culture Conditions: Some Legionella strains may require specific growth conditions or media not provided by BCYE Agar.
- Expertise Required: Accurate interpretation of results and identification of Legionella colonies on BCYE Agar require microbiological expertise.
- Cost: Preparing BCYE Agar plates and maintaining the necessary equipment can be costly.
Safety Considerations of BCYE Agar:
- Personal Protective Equipment (PPE):
- Wear appropriate PPE, including lab coats, disposable gloves, safety goggles or face shields, and closed-toe shoes, to protect against potential exposure.
- Hand Hygiene:
- Wash hands thoroughly before and after handling BCYE Agar and other materials in the laboratory.
- Chemical Handling:
- Follow safety data sheet (SDS) guidelines when handling chemicals used in BCYE Agar preparation, such as potassium hydroxide (KOH).
- Autoclave Safety:
- Exercise caution when using an autoclave to sterilize BCYE Agar. Be aware of hot surfaces, steam, and high temperatures.
- Aseptic Technique:
- Maintain sterile technique to prevent contamination of BCYE Agar and samples. Work in a laminar flow hood or biosafety cabinet when necessary.
- Biohazard Disposal:
- Dispose of used BCYE Agar plates, contaminated materials, and potentially infectious samples as biohazardous waste according to laboratory safety protocols.
- Allergies and Sensitivities:
- Be aware of any allergies or sensitivities to agar or other components in BCYE Agar, and take necessary precautions.
- Inhalation Precautions:
- Avoid inhaling aerosols or dust generated during BCYE Agar preparation or when working with cultures.
- Emergency Equipment:
- Know the location and proper use of emergency equipment, such as eyewash stations and safety showers, in case of accidents or exposure.
- Training and Education:
- Ensure that laboratory personnel are adequately trained in microbiological techniques and safety procedures, including BCYE Agar handling.
- Bacterial Culture Handling:
- Handle bacterial cultures, including Legionella, with care, following containment protocols, and safety measures.
- Contamination Prevention:
- Minimize the risk of cross-contamination by using separate tools and equipment for different tasks.
- Keep accurate records of experiments, including sample details, procedures, and results.
- Regulatory Compliance:
- Adhere to local, state, and national regulations governing the handling, disposal, and safety practices related to biohazardous materials and laboratory work.
- Seek guidance and recommendations from your institution’s biosafety officer or safety committee for specific safety guidelines and procedures related to BCYE Agar and microbiological research.
Alternative Agar Medias:
While BCYE Agar (Buffered Charcoal Yeast Extract Agar) is commonly used for the isolation and cultivation of Legionella species, there are alternative agar media that can serve similar or related purposes in microbiology. Here are some alternative agar media along with their common applications:
- GVPC Agar (Glycine-Vancomycin-Polymyxin-Cycloheximide Agar):
- Application: Selective medium for the isolation of Legionella species, similar to BCYE Agar, often used in environmental samples.
- BCYE Without L-Cysteine Agar:
- Application: Modified BCYE Agar without L-cysteine for the isolation of Legionella species, particularly Legionella pneumophila.
- BCYE with Antibiotics:
- Application: Modified BCYE Agar supplemented with antibiotics for selective isolation of Legionella species.
- GVPC Broth (Glycine-Vancomycin-Polymyxin-Cycloheximide Broth):
- Application: Liquid medium used for the selective enrichment of Legionella species from environmental samples.
- BCYE Alpha Agar:
- Application: A variant of BCYE Agar designed to enhance the growth and differentiation of Legionella pneumophila.
- PW Agar (Phosphate-Buffered Water Agar):
- Application: Used for the recovery and detection of Legionella species from environmental water samples.
- CYE Agar (Charcoal Yeast Extract Agar):
- Application: Similar to BCYE Agar, used for the cultivation and isolation of Legionella species.
- Thayer-Martin Agar:
- Application: Selective medium for the isolation of Neisseria gonorrhoeae and Neisseria meningitidis, not specific for Legionella.
- Lowenstein-Jensen Agar:
- Application: A medium used for the cultivation of Mycobacterium species, not specific for Legionella.
- Columbia CNA Agar (Colistin Nalidixic Acid Agar):
- Application: Selective medium for Gram-positive bacteria like Streptococcus and Staphylococcus species, not specific for Legionella.
- Mannitol Salt Agar:
- Application: Selective medium for the isolation of Staphylococcus species, not specific for Legionella.
- Xylose Lysine Deoxycholate (XLD) Agar:
- Application: Selective and differential medium for the isolation and differentiation of enteric pathogens, not specific for Legionella.
Future Trends in Legionella Detection:
Future trends in Legionella detection are expected to revolve around enhancing accuracy, speed, and efficiency. Here’s a concise overview:
- Rapid Molecular Techniques: Continued development and adoption of molecular methods like PCR and metagenomics for quicker and more specific Legionella detection.
- Automation and Robotics: Increased automation in sample processing, reducing human error and speeding up analysis.
- Biosensors: Advancements in biosensor technology for real-time, on-site detection of Legionella in water systems.
- Machine Learning and AI: Integration of artificial intelligence to analyze complex data patterns and predict Legionella outbreaks.
- Environmental Monitoring: Wider implementation of continuous environmental monitoring systems to detect Legionella in real-time.
- Point-of-Care Testing: Development of portable, user-friendly devices for on-site Legionella testing in healthcare settings.
- Regulatory Compliance: Stricter regulations and guidelines for Legionella control, driving the adoption of advanced detection methods.
- Public Health Surveillance: Improved integration of surveillance systems to monitor and respond to Legionella outbreaks more effectively.
What is Legionella?
Legionella is a genus of bacteria that can cause Legionnaires’ disease, a severe form of pneumonia, and Pontiac fever, a milder illness.
How is Legionella transmitted to humans?
Legionella is typically transmitted to humans through inhalation of aerosolized water droplets contaminated with the bacteria, often from sources like cooling towers, showers, and hot tubs.
What are the symptoms of Legionnaires’ disease?
Symptoms include high fever, chills, cough, muscle aches, headache, and shortness of breath. It can be severe and may lead to pneumonia.
How is Legionnaires’ disease diagnosed?
Diagnosis involves clinical evaluation, chest X-rays, and laboratory tests, including urine antigen tests and bacterial culture.
What is the role of Legionella detection in public health?
Legionella detection is critical for identifying and controlling outbreaks, ensuring water safety, and preventing Legionnaires’ disease.
What is BCYE Agar, and how is it used for Legionella detection?
BCYE Agar is a culture medium used to isolate and cultivate Legionella species from environmental samples. It provides specific nutrients for Legionella growth.
What are the limitations of BCYE Agar?
BCYE Agar may allow the growth of non-Legionella bacteria, and Legionella colonies can take several days to appear.
What are alternative methods for Legionella detection?
Alternatives include PCR, immunological tests, and molecular techniques for rapid and specific Legionella detection.
Are Legionella outbreaks common?
Legionella outbreaks are relatively rare but can occur in situations where the bacterium proliferates in water systems and is aerosolized.
How can Legionella outbreaks be prevented?
Prevention measures include regular maintenance of water systems, water temperature control, and the use of biocides in cooling towers.
Who is at higher risk of Legionnaires’ disease?
Individuals with weakened immune systems, the elderly, and smokers are at higher risk of developing severe forms of the disease.
Is Legionnaires’ disease contagious from person to person?
No, Legionnaires’ disease is not typically spread from person to person. It is contracted by inhaling contaminated water droplets.
What is Legionella pneumophila?
Legionella pneumophila is the most common species responsible for Legionnaires’ disease in humans.
What should I do if I suspect a Legionella outbreak in my facility?
Immediately contact public health authorities and implement control measures to prevent further exposure to contaminated water sources.
In conclusion, Legionella detection and management are essential for safeguarding public health. Advances in diagnostic methods, environmental monitoring, and regulatory compliance are crucial in preventing Legionnaires’ disease outbreaks. Continued vigilance and proactive measures are necessary to minimize the risk associated with Legionella in water systems, ultimately protecting the well-being of communities.
Possible References Used
